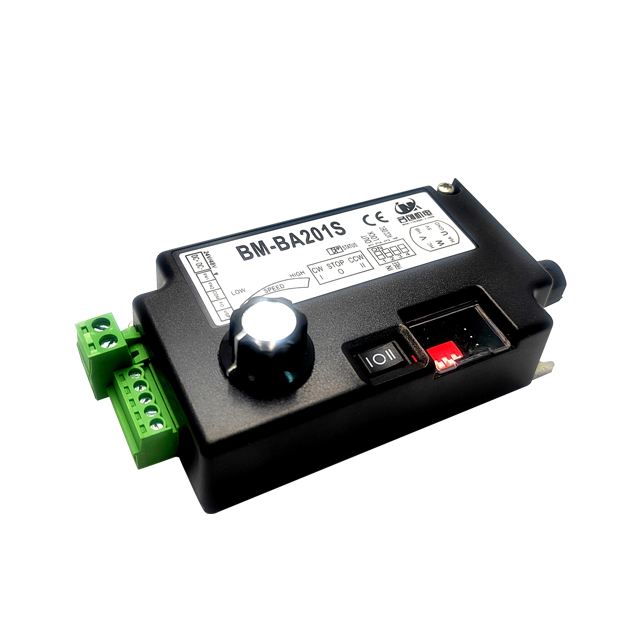

Product features
Ø Analog voltage speed control
Ø Internal VSP adjustment potentiometer stepless speed regulation
Ø Internal control switch can control the start, stop, forward and reverse rotation of the motor;
Ø I/O points control the start, stop, forward and reverse rotation of the motor;
Ø Supports NPN and PNP signal input/output
Ø LED fault prompt
Ø Dynamic braking (current lock and position lock)
Locking the car during shutdown is more reliable;
Ø 4-speed acceleration/deceleration time setting
Ø The driving method supports sensory startup and non-sensory operation.
The motor runs more smoothly and reliably
Number of driving motors: 1 (one for one)
size
Port definition
Wiring instructions
FN2/FO are both optocoupler isolation forms, and FN1/FN2 and COM support a maximum input of 48V. When the driver fails, FO and COM are actively connected, supporting a maximum current of 100mA. When there is no fault, FO and COM are disconnected. COM is the common terminal of FN1/FN2/FO.
For more information, please refer to Drive manual
