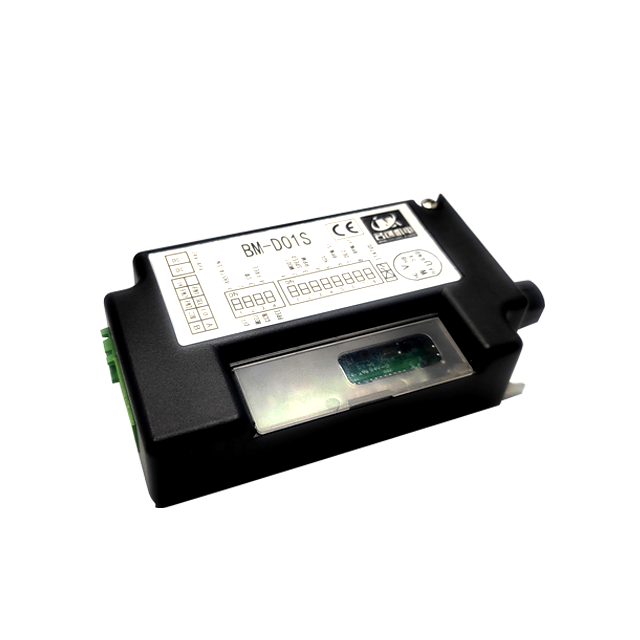

Product features
Ø 16 speed settings
Ø 8-speed acceleration/deceleration time setting
Ø I/O controlStart, stop and forward and reverse;
Ø supportNPN and PNP signal input/output
Ø LED fault prompt
Ø I/O multi-speed, multiple operating modes
Ø Dynamic braking (current lock and position lock)
Locking the car during shutdown is more reliable;
Ø The driving method supports sensory startup and non-sensory operation.
The motor runs more smoothly and reliably
Ø 485 communication control
Ø Motor terminal block form:9-pin plastic sealed flat head terminal
Ø Number of drive motors:1 unit (one to one)
size
Port definition

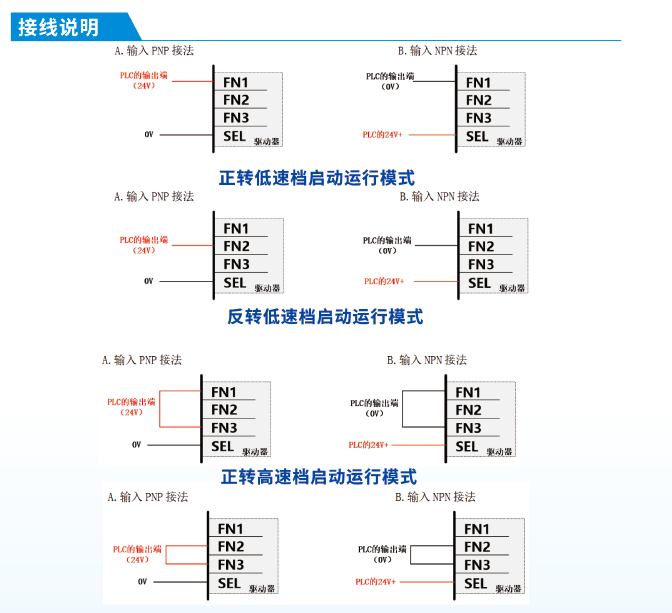

Wiring instructions
Ø PNP input: SEL is connected to the negative pole of the PLC power supply (0V), and FN1/FN2/FN3 are connected to the output port of the PLC;
Ø NPN input: SEL is connected to the positive power supply of the PLC (24V+), and FN1/FN2/FN3 are connected to the output port of the PLC.
For more information, please refer to Drive manual
