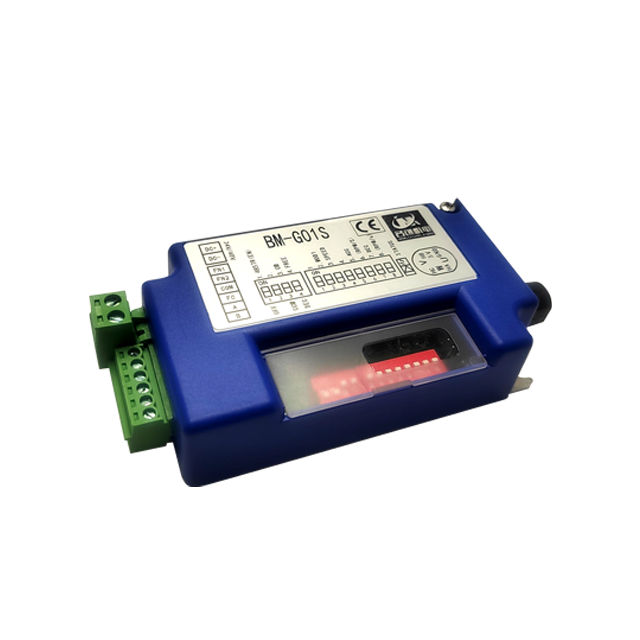

Product features
Ø 16 speed settings
Ø 4-speed acceleration/deceleration time setting
Ø I/O controls start, stop and forward and reverse rotation;
Ø Supports NPN and PNP signal input/output
Ø LED fault prompt
Ø 485 communication control
Ø Dynamic braking (current lock and position lock) stops and locks the car more reliably;
Ø The driving mode supports inductive start and non-inductive operation, making the motor run more smoothly and reliably.
Ø Motor terminal block form: 9-pin plastic flat head terminal
Ø Number of driving motors: 1 (one for one)
size
Port definition
Wiring instructions
Forward and reverse control schematic diagram Fault output control schematic diagram
FN2/FO are both optocoupler isolation forms, and FN1/FN2 and COM support a maximum input of 48V. When the driver fails, FO and COM are actively connected, supporting a maximum current of 100mA. When there is no fault, FO and COM are disconnected. COM is the common terminal of FN1/FN2/FO.
For more information, please refer to Drive manual
