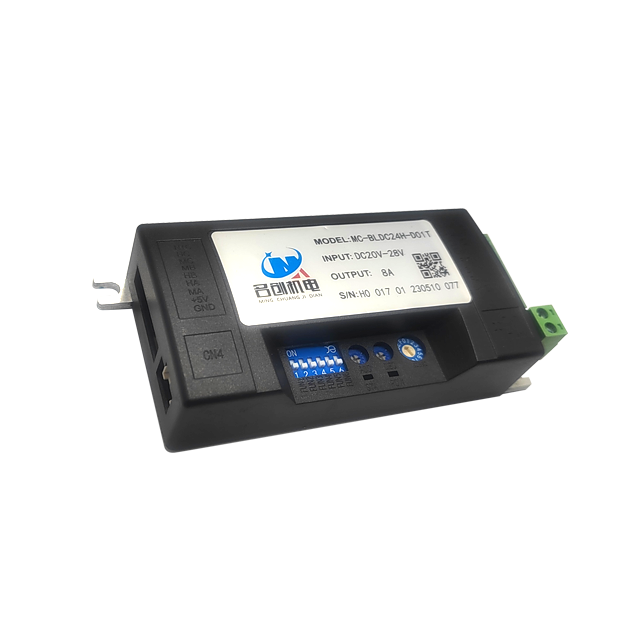

Product features
Ø 16 speed settings
Ø 6-speed acceleration/deceleration time setting
Ø I/O controlStart, stop and forward and reverse;
Ø supportNPN and PNP signal input/output
Ø LED fault prompt
Ø 485 communication control
Ø Intelligent motor temperature control
Ø PID speed and current double loop control intelligent control
Ø Motor terminal block form:9-pin JST connection terminal
Ø Number of drive motors:1 unit (one to one)
size

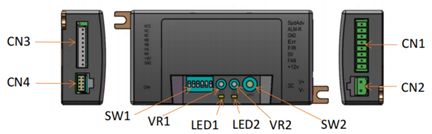

Port definition
CN1——I/Ointerface
CN2——Power input terminal
CN3——Motor plug-in port
CN4——485Communication port
SW1——Function selection DIP switch
SW2——Speed control switch
VR1/VR2——Start-stop delay speed control switch
LED1/LED2——Fault light/Running indicator light

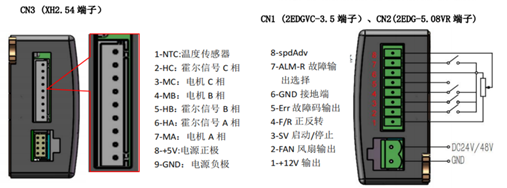

Wiring instructions
For more information, please refer to Drive manual
