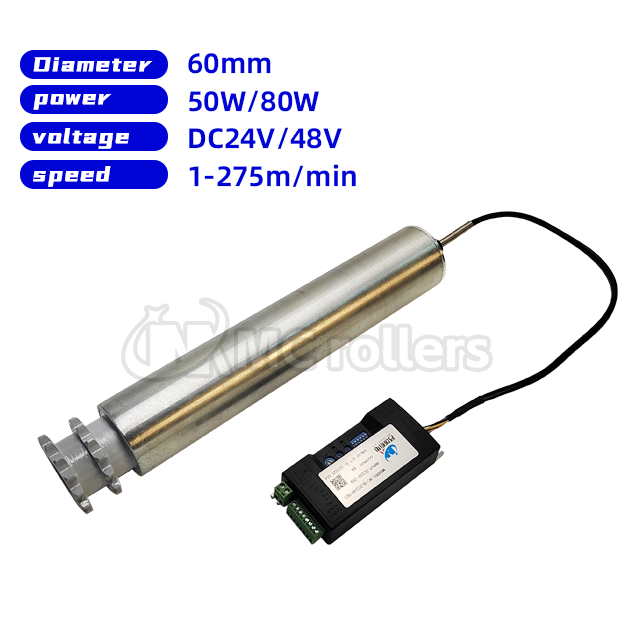

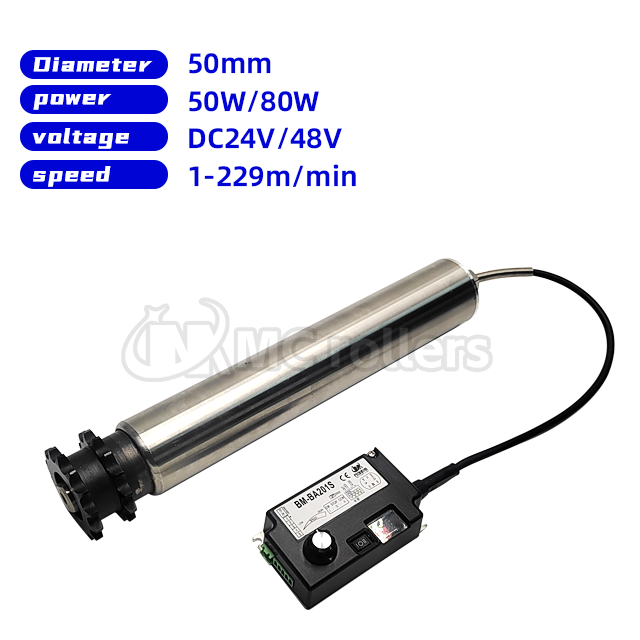

Sprocket electric roller

Features
1. Suitable for heavy-duty transportation. The commonly used sprockets are 08B14T, single chain or double chain.Materials available are carbon steel, stainless steel, and sprockets of other specifications can also be configured.
2. The torque attenuation is large. In order to exert its best transmission performance, the double chain drive should be arranged in the middle of the conveyor as much as possible.

Availability:

Quantity:



Inquire Add to Basket

Sprocket electric roller Driven roller Timing pulley roller Reduction roller drive

Product Description

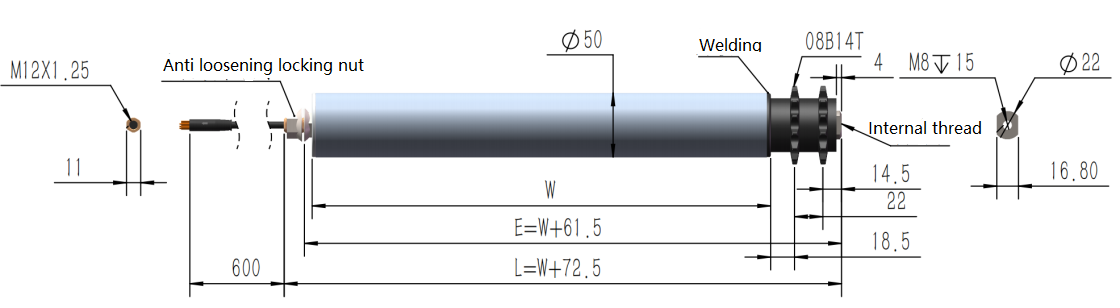

Overall dimensions

链轮图

static load capacity(Unit: KG)

Diameter (mm)	Wall thickness (mm)	Length mm
Diameter (mm)	Wall thickness (mm)	300	400	500	600	700	800	900	1000	1100	1200	1300
φ50mm	1.5	80	70	60	55	50	45	40	35
φ60mm	2	140	140	110	110	80	80	60	60	45	30	20

Performance parameters

5-3 Pipe diameterΦ60mm, Rated power:50W, maximum power 90W

speed code	gearbox	speed ratio	Linear speed (m/min)		Drum speed (prm)		Torque(Nm)		Tangential force(N)		Current(A)
		speed ratio	Linear speed (m/min)		Drum speed (prm)		Torque(Nm)		Tangential force(N)		Current(A)
		K	min	max	min	max	Rated	start up	Rated	start up	Rated	start up
C7	Level 3	139	1	7	7	39	13.5	72.8	449	2472	24V/3.5A 48V/1.7A	24V/5A 48V/3.5A
C9		115	2	9	9	47	11.2	60.2	372	2008
C10		100	2	10	10	54	9.7	52.4	323	1746
C11		95	2	11	11	57	9.2	49.8	307	1659
C13		79	2	13	13	68	7.7	41.4	255	1379
C14		71	3	14	14	76	6.9	37.2	230	1240
C15		68	3	15	15	79	6.6	36.3	220	1210
C17		59	3	17	17	92	6.1	33.55	203	1118
C20		51	4	20	20	106	5.2	28.6	173	953
C35	Level 2	27	7	38	37	200	2.9	15.95	97	532
C45		22	9	46	45	245	2.4	13.2	80	440
C50		19	10	54	53	284	2.1	11.55	70	385
C60		16	12	64	63	338	1.8	9.9	60	330
C70		14	13	73	71	386	1.5	8.25	50	275
C195	Level 1	5.2	36	196	192	1038	0.6	3.3	20	110
C235		4.3	44	237	233	1256	0.5	2.75	17	92
C275		3.7	51	275	270	1459	0.4	2.2	13	73

5-4 Pipe diameterΦ60mm, Rated power:80W, maximum power 160W

speed code	gearbox	speed ratio	Line speed (m/min)		Drum speed (prm)		Torque(Nm)		Tangential force(N)		Current(A)
		speed ratio	Line speed (m/min)		Drum speed (prm)		Torque(Nm)		Tangential force(N)		Current(A)
		K	min	max	min	max	Rated	start up	Rated	start up	Rated	start up
D7	Level 3	139	1	7	7	39	18.6	102.44	620.9	3414.8	24V/5A 48V/2.4A	24V/10A 48V/4.8A
D9		115	2	9	9	47	15.4	84.76	513.7	2825.2
D10		100	2	10	10	54	13.4	73.7	446.7	2456.7
D11		95	2	11	11	57	12.7	70.02	424.3	2333.8
D13		79	2	13	13	68	10.6	58.22	352.9	1940.8
D14		71	3	14	14	76	9.5	52.33	317.1	1744.2
D15		68	3	15	15	79	9.1	50.05	303.3	1668.3
D17		59	3	17	17	92	8	44	266.7	1466.7
D20		51	4	20	20	106	6.8	37.4	226.7	1246.7
D35	Level 2	27	7	38	37	200	4.16	22.88	138.7	762.7
D45		22	9	46	45	245	3.39	18.65	113	621.5
D50		19	10	54	53	284	2.92	16.06	97.3	535.3
D60		16	12	64	63	338	2.46	13.53	82	451
D70		14	13	73	71	386	2.15	11.83	71.7	394.2
D195	Level 1	5.2	36	196	192	1038	0.72	3.96	24	132
D235		4.3	44	237	233	1256	0.6	3.3	20	110
D275		3.7	51	275	270	1459	0.52	2.86	17.3	95.3
