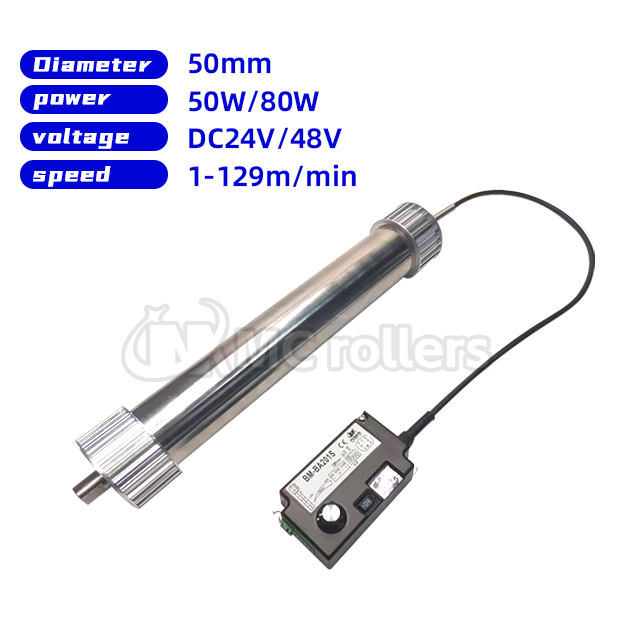

Synchronous pulley electric roller

Features
1. The synchronous belt can effectively prevent slipping. Generally, in scenarios where high position accuracy is required, the synchronous wheel material is usually 2 grooves. The T5 type 26-tooth plastic steel synchronous wheel can be customized to meet special requirements. The material can be aluminum alloy. , stainless steel and other materials.
2. The load capacity of the roller depends on the transmission arrangement and synchronous belt model. Normally, the load capacity of a single zone can reach 100KG.

Availability:

Quantity:



Inquire Add to Basket

Driven roller Timing pulley roller Reduction roller drive

Product Description

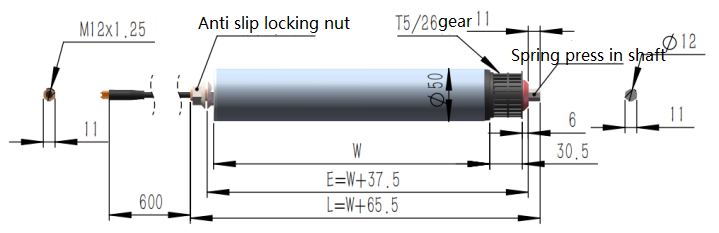

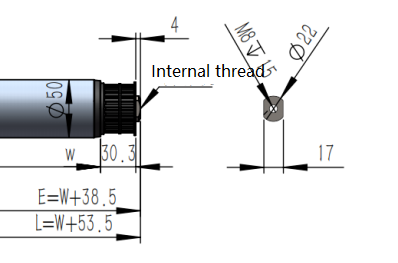

Overall dimensions

Static load capacity(Unit: KG)

Diameter (mm)	Wall thickness (mm)	Length mm
Diameter (mm)	Wall thickness (mm)	300	400	500	600	700	800	900	1000	1100	1200	1300
φ50mm	1.5	80	70	60	55	50	45	40	35
φ60mm	2	140	140	110	110	80	80	60	60	45	30	20

Performance parameters

5-1 Pipe diameterΦ50mm, rated power: 50W, maximum power 90W
speed code	gearbox	speed ratio	Linear speed (m/min)		Drum speed (prm)		Torque (Nm)		Tangential force (N)		Current (A)
		K	min	max	min	max	Rated	start up	Rated	start up	Rated	start up
A6	Level 3	139	1	6	7	39	13.5	72.8	539	2912	24V/3.5A 48V/1.7A	24V/5A 48V/3.5A
A7		115	1	7	9	47	11.2	60.2	446	2409
A8		100	2	8	10	54	9.7	52.4	388	2095
A9		95	2	9	11	57	9.2	49.8	369	1990
A11		79	2	11	13	68	7.7	41.4	307	1655
A12		71	2	12	14	76	6.9	37.2	275	1488
A13		68	2	12	15	79	6.6	36.1	264	1444
A14		59	3	14	17	92	6.1	33.7	244	1348
A15		51	3	17	20	106	5.2	28.5	208	1140
A30	Level 2	27	6	31	37	200	2.9	15.8	116	632
A35		22	7	39	45	245	2.4	12.9	96	516
A40		19	8	45	53	284	2.1	11.8	84	472
A50		16	10	53	63	338	1.8	9.7	72	388
A60		14	11	61	71	386	1.5	8.5	60	340
A160	Level 1	5.2	30	163	192	1038	0.6	3.4	24	136
A190		4.3	37	197	233	1256	0.5	2.8	20	112
A230		3.7	42	229	270	1459	0.4	2.4	16	96
5-2 Pipe diameterΦ50mm, rated power: 80W, maximum power 160W
speed code	gearbox	speed ratio	Linear speed (m/min)		Drum speed (prm)		Torque (Nm)		Tangential force (N)		Current (A)
speed code	gearbox	K	min	max	min	max	Rated	start up	Rated	start up	Rated	start up
B6	Level 3	139	1	6	7	39	18.6	100.6	745.0	4023.2	24V/5A 48V/2.4A	24V/10A 48V/4.8A
B7		115	1	7	9	47	15.4	83.2	616.4	3328.6
B8		100	2	8	10	54	13.4	72.4	536.0	2894.4
B9		95	2	9	11	57	12.7	68.7	509.2	2749.7
B11		79	2	11	13	68	10.6	57.2	423.4	2286.6
B12		71	2	12	14	76	9.5	51.4	380.6	2055.0
B13		68	2	12	15	79	9.10	49.1	364.0	2002.0
B14		59	3	14	17	92	8.00	43.2	320.0	1760.0
B15		51	3	17	20	106	6.80	36.7	272.0	1496.0
B30	Level 2	27	6	31	37	200	4.16	22.5	166.4	915.2
B35		22	7	39	45	245	3.39	18.3	135.6	745.8
B40		19	8	45	53	284	2.92	15.8	116.8	642.4
B50		16	10	53	63	338	2.46	13.3	98.4	541.2
B60		14	11	61	71	386	2.15	11.6	86.0	473.0
B160	Level 1	5.2	30	163	192	1038	0.72	3.9	28.8	158.4
B190		4.3	37	197	233	1256	0.60	3.2	24.0	132.0
B230		3.7	42	229	270	1459	0.52	2.8	20.8	114.4
